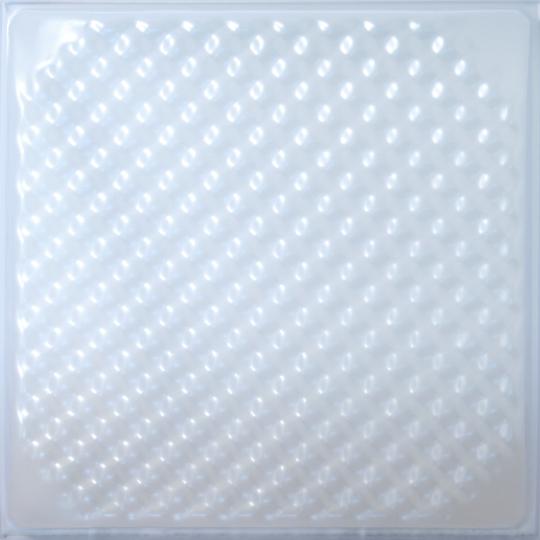

AcoustoTherm® Backpanels
V1-ACOU-22CL
Part NumberRequest Custom Color
All form fields in bold required.
Custom colors are typically not cost effective for orders of less than 75,000 sq. ft.
REQUEST SAMPLES
Request Samples
All form fields in bold required.
REQUEST QUOTE
Request Quote
All form fields in bold required.
PRICE & PURCHASE
AcoustoTherm® Backpanels
| Part Number: V1-ACOU-22CL |
| UPC: 817273018669 |
Specifications |
|
|---|---|
| Height | 23.875 in. |
| Width | 23.875 in. |
| Area | 4 sq. ft. (nominal) |
| Features | Recess 3.90 in. from tile face |
| Thickness | 0.013 in. |
| Weight | 6.4 oz. (0.10 lb. per sq. ft.) |
| Material | Transluminous rigid vinyl |
| Color | Frosted |
| Finish | Satin |
Installation |
|
|---|---|
| Installation Type | Standard drop (15/16 to 1 in.) |
| Pass-Through Sprinklers | See Section 8, Fire-Suppression Sprinklers, of the installation instructions |
| Direct Mount Grid | No, this product cannot be used with direct mount grid |
| Temp. Warning | Not recommended for installation where ceiling temperatures exceed 120°F |
Certifications, Listings, Approvals |
|
|---|---|
| Fire Ratings | Class A |
| Euroclass Rating B-s2-d0 | |
| Flame Class V-0 | |
| Tested in accordance with ASTM E84, CAN/ULC-S102-10, and EN 13501-1:2007+A1:2009 | |
| Indoor Air Quality | Greenguard Gold Certified; low-VOC; dust and fiber free |
| Moisture | FEMA Class 4 Material; waterproof; washable |
| Sustainability | 100% recyclable |
| See Sustainable Building Contributions | |
Performance |
|
|---|---|
| Noise Reduction | NRC 0.30 with 0.013" vinyl panels |
| NRC 0.40 with perforated, 0.013" vinyl panels | |
| Tested in accordance with ASTM C423, Mounting E | |
| Sound Transmission | STC 11 with 0.013" vinyl panels |
| STC 15 with 0.030" vinyl panels | |
| Tested in accordance with ASTM E413 | |
| Light Reflectance | 8.99% |
| Tested in accordance with ASTM E1477 | |
| Light Transmittance | 76.81% |
| Tested in accordance with ASTM E1348 | |
| Other Criteria | See Technical Data Sheet |
